Easy to install and use

Usevolt control system is user friendly, easy to use electronic control system that adapts completely to the vehicle's requirements. Be it a forestry crane, front loader, excavator, dump truck, or any other hydraulic device, The Usevolt control system adapts to it and creates a control system made just for that purpose.

Modular by nature

Each Usevolt control module has it's own responsibilities, which ensures that any individual module can be removed from the system and the rest continue their operation. In case of fault, the control system indicates precisely the location of the fault, making maintenance easy even without any particular knowledge of electronics.

Build a control system that suits Your machine

Because all Usevolt control modules are independent devices, they can be connected to each other in almost any way possible. This way a completely unique control system can be built to fit the vehicle. Here's only a few examples:

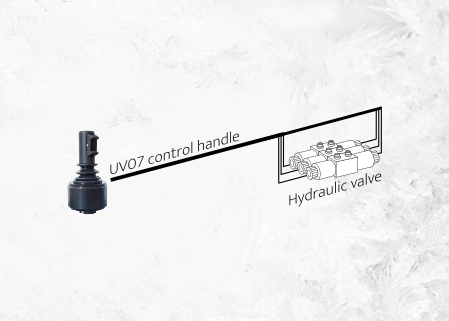

Front Loader

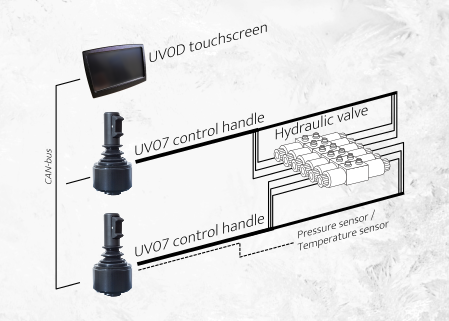

Forestry trailer

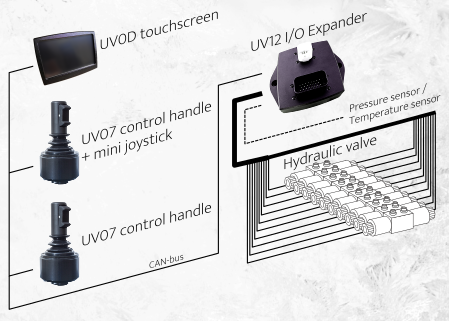

Forestry machine

The same idea can be improvised even further. For example, a front loader and a forestry trailer can be controlled with the same joysticks, when separate control systems is not necessary.

Although Usevolt control modules were originally designed to be used together to make up a whole control system, they can also be used individually as a part of a third party control system. All our products use standardized protocols for communication, minimizing vendor specific design in the control system architecture. Contact us for more information on application dependent use cases.

CAN-bus technology

Usevolt control system is a distributed control system. It consists of multiple controllers, or modules, which not only work individually, but also communicate with other modules in the system. This communication is done over the CAN-bus, an industry standard, reliable communication protocol used widely in industrial, automotive, marine and aerial vehicles all around the world. By using the CAN-bus, the wire harness can be simplified greatly. And as connectors and wires are the most vulnerable part of an electrical control system, CAN-bus technology improves the reliability of the whole system.

Supply voltage 8 - 30 V DC
Operators 4
User interface Touchscreen color display
Compatible hydraulic valves Current controlled, Ratiometric voltage controlled (Danfoss PVG), CAN-bus controlled
Vehicles Forestry machines, tractors, cranes, trailers, dump trucks, fork lifts
UVCAN Leaflet uvcan_leaflet_en.pdf
